Quick Details

  • Place of Origin: Henan, China (Mainland)
  • Brand Name: joda
  • Model Number: JDZ50D
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Product name: Aluminum Smelter Crucible for Melting Steel
  • Usage: Transportation of molten aluminum
  • Power: 1.1KW
  • speed ration: 134.3/8789
  • Pouring Degree: 53°
  • Rated Volume: 2.174m3
  • Press Air Pressure: 0.6Mpa
  • Height: 3250mm
  • Weight: 7.6t
  • Certification: GNAS,IAF,ISO

Packaging & Delivery

Packaging Details Long - distance insulation refractory aluminum melting crucible for melting steel will be nude packed or as your request.
Delivery Time Shipped in 15 days after advanced payment

Long - distance Insulation Refractory Aluminum Melting Crucible for Melting Steel

What Are The Features of Our Aluminum Melting Crucible?
 As a transfer equipment for metallurgical industry, it is a larger sealed container with steel shell lined with refractory material. Relying on its own negative pressure generating system, it can generate a certain degree of vacuum in the ladle to extract and transfer the finished smelting liquid from pot-shell, such as aluminum, magnesium and other metals.

"Joda Patent" Vacuum Ladle adopts the new technoloy and it has significant economic benefit especially for long distance transportation. When laying the ladles, advanced supercritical thermal preservative material AEROGEL has been adopted together with heavy castables or refractory bricks, and the heat preservation effect can be increased by more than 1 time. The aluminium liquid, when transported within the smelter or for long distance, will have the lowest temperature drop (less than 1 ℃ per km), which will have significant economic benefit for the aluminium processing factories.

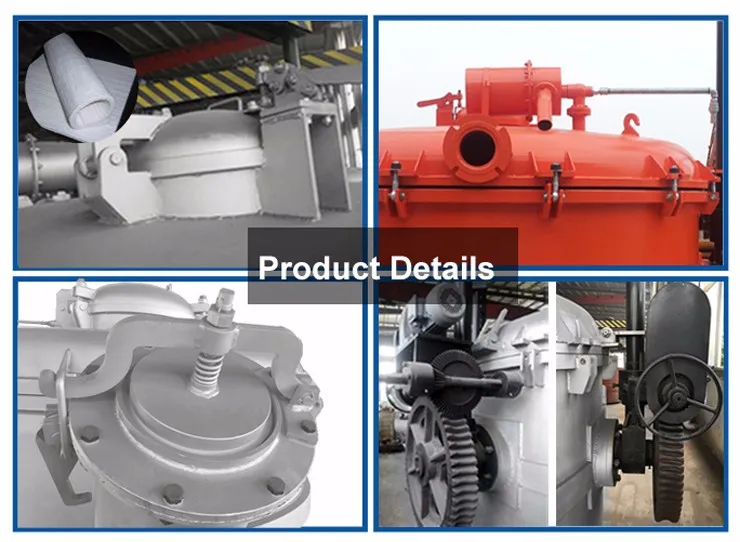

What Are The Details of Our Aluminum Melting Crucible?
Vacuum Ladle is mainly composed of suctorial aluminum tube, jet exhauster, gearing, and heat insulation layer. The ladle is designed into detachable headed column and structure just like teapot ladle, with input and output on both sides. Making the ladle lift and transport convenient, and the heat loses slowly. It can be operated by manual or electrically-operated. The two modes can be interconvertibled with a clutch, which assure the liquid aluminum can be poured out in emergency.

What's The Technical Parameters of Our Aluminum Melting Crucible?






Press Air





















Application: Transfer of molten aluminium from the potroom crucibles into the furnaces and vice versa can be carried out through different methods. One of the most common way to transfer metal from crucible into furnaces is by crucible tilt machine. It can also be used for transportation of other non-ferrous metals.

What Did Our Customer Say?


Send Inquiry

Why Choose Us?
What's The Product Process of Our Vacuum Ladle?


Our Factory
How About Us?


What About The Package and Delivery?


As a professional manufacturer for aluminum smelters, we have rich experience and good reputation at home and aboard. Our products have been exported to many countries, such as Iceland, Sweden, Germany, Turkey, Malaysia, ect. Our logistics team is professional in shipment both containers and also by bulk vessels.


Recommended Products





  • Q What Is the Warranty for The Machines?
  • A12Months for Free Guarantee and Life Long Standard Paid Services.
  • QWhat Is The Materials?
  • AAll the materials are procured from qualified mill with certificate according to the Drawing Requirement.
  • Q How Can I Get The Price?
  • AWithin 24 Hours, if urgent, please directly call us.
  • QWhether The Machine Price Can Be More Discount?
  • AIn general, our MOQ is 1 Set with very Resonable Price. But if large order, we also can apply to our manager to appropriately give you a best discount.
  • QWhat about Delivery Date?
  • AUsually about 35 days after confirming the order (signed drawings) and receiving deposit.
  • QWhat Kind of Report do We Provide?
  • AWe provide a whole-set of the production reports, including the Weekly Report, Monthly Report, even  Daily Report which you can follow up the situation of production at any time.
  • QDoes Your Company Provide the OEM Or ODM Service?
  • AOf course. We also supply OEM or ODM in this filed, welcome to discuss our cooperation.
  • QDo You Offer Oversea Installation?
  • AWe can provide experienced engineer to help you install the equipment under the condition you assume the related cost, as well as training your workers freely.
Choose us, you will get USD22000 trade assurance to ensure quality, delivery time and payment .

Send your Inquiry Details in the Below , Click "Send" Now !
