Joda Full-Automatic Metal Sheet Vacuum Lifters Lifting Stacking Machine

FOB Reference Price:Get Latest Price
US $75,000-100,000 / Sets | 1 Set/Sets Metal Sheet Vacuum Lifters Lifting (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Henan, China (Mainland)
Brand Name:
Joda
Model Number:
JD-DBJ
Power(W):
2000W
Dimension(L*W*H):
Requirment
Certification:
ISO9001
Usage:
Material Handling
Type:
Stacking Machine
Application:
Multi-function
Max Lifting Height:
2500mm
Max.size of plate:
1220
Safety Guarantee System:
Air Cutting
Material:
Steel+rubber
color:
Requirment
Product Name:
Vacuum Lift Machine
Name:
Vacuum Lifting Equipment
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
12 Months
Supply Ability
Supply Ability:
30 Set/Sets per Month Metal Sheet Vacuum Lifters Lifting
Packaging & Delivery
Packaging Details
Joda Full-Automatic Metal Sheet Vacuum Lifters Lifting Stacking Machine will be packed in steel box made from steel sheet and angle steel. Important parts will be packed with air bubble film.
Port
Shanghai/Qingdao/Tianjin
Lead Time :
Shipped in 35 working days after payment
Video Description
Product Description

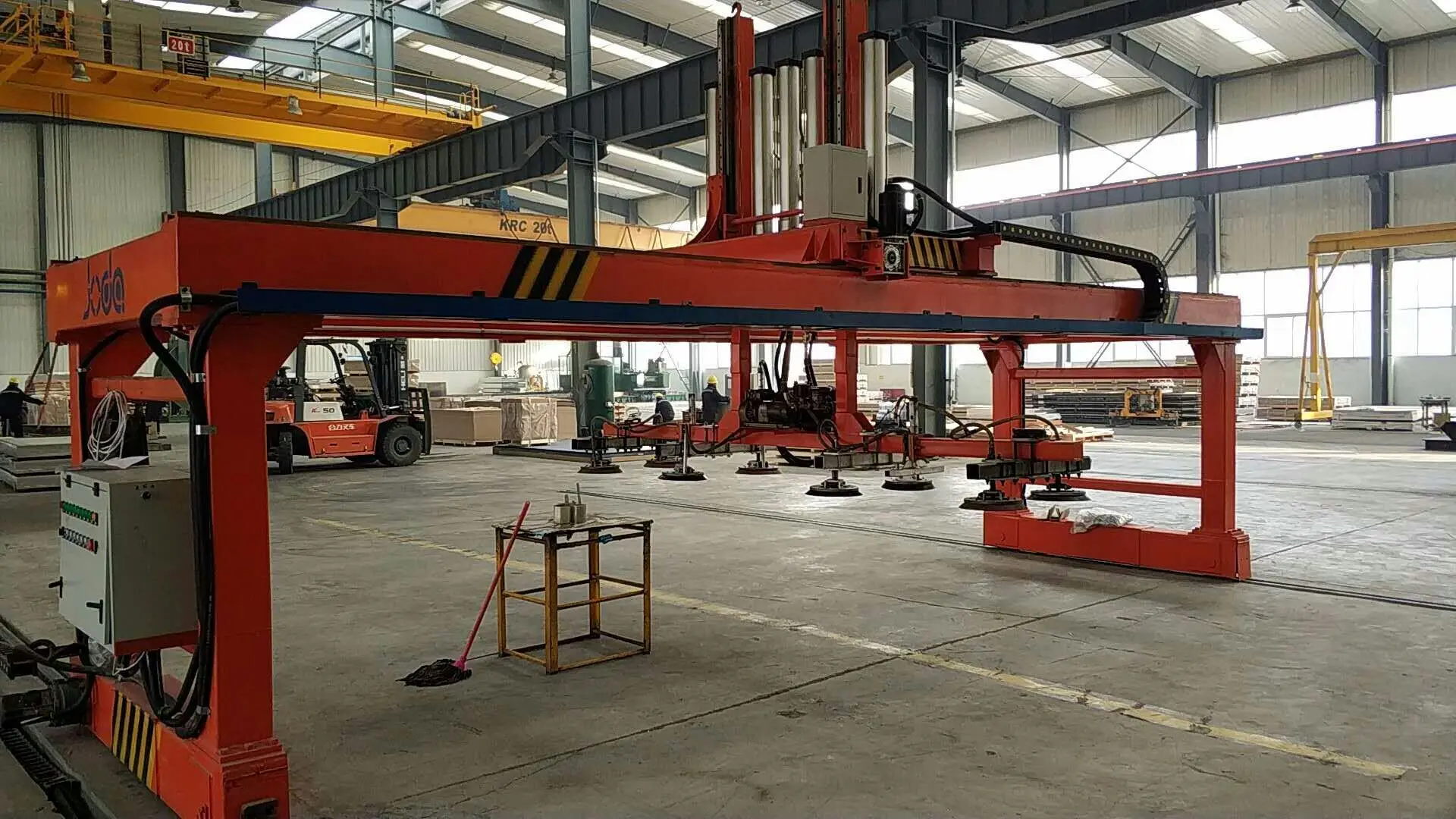

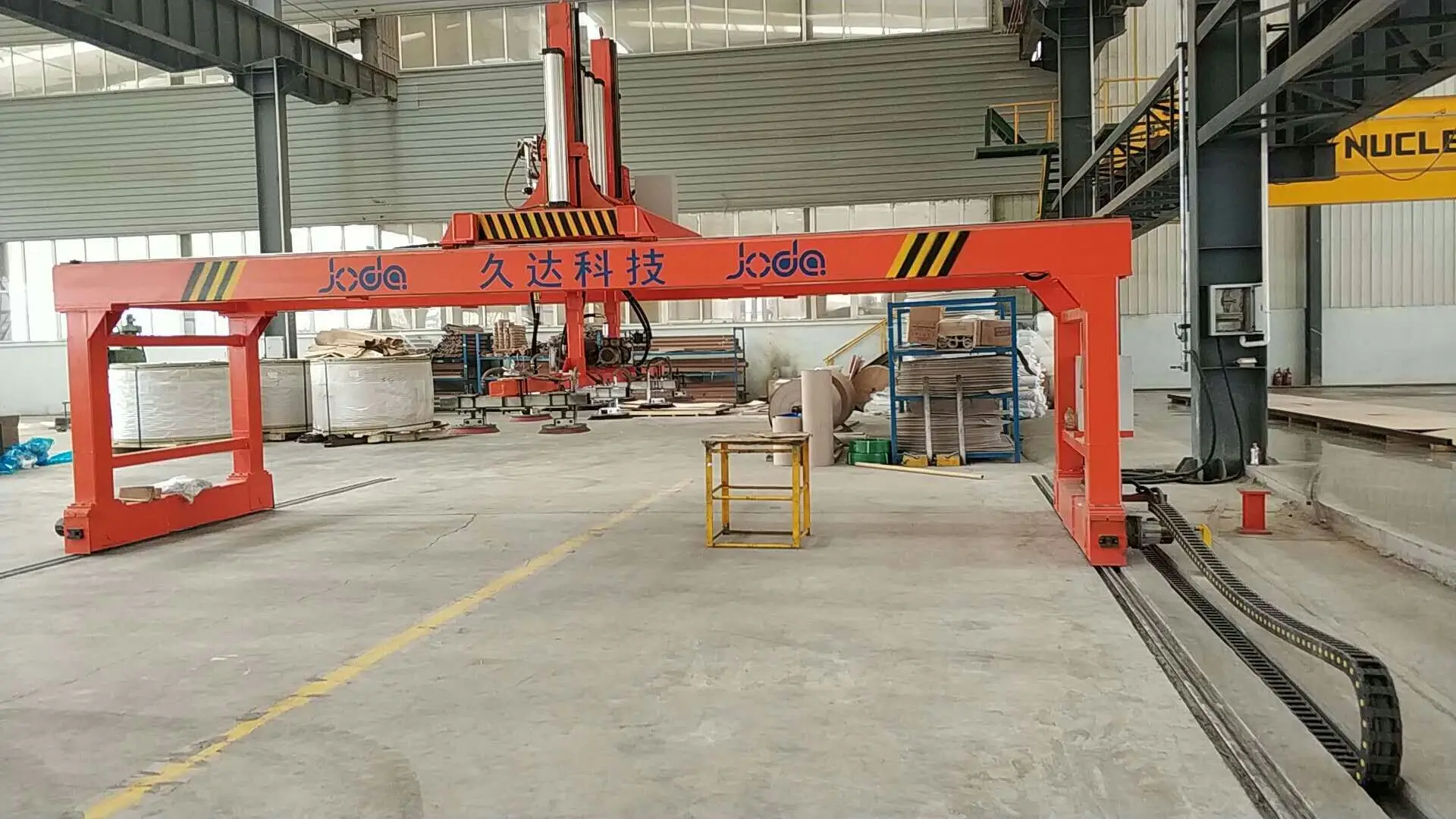

Joda Full-Automatic Metal Sheet Vacuum Lifters Lifting Stacking Machine

Stacking machine is an important part of hot-rolling production line. It is located at the end of the rolling line, in accordance with the rolling table in the last pass to the plate according to the design length of the palletizing operation. Usually, the machine is designed for two modes of operation, manual and automatic. In manual mode, all kinds of pallet movements in the time distribution and order, all by operating the button step by step to complete. In automatic mode, there is a strict timing relationship between various pallets in time. If it is not properly programmed in the control program, can result in confusion in the operation of the various pallets. Lightweight affects the quality of the pallets, heavy damage to equipment.

Function Characters

1) Vacuum chucking stacker machine is designed with adjustable frame vacuum adsorption structure, customized services in the use of a variety of different marerials.

2) Full hydraulic system, more convenient, more simple and more flexible.

3) The use of imported PLC computer control program: it can be forced to send board and manual delivery board. It can realize synchronization of production, delivery board, board automation. Fully achieved automated, intelligent, humane, safe and efficient.

Product Categories

At present, the stacker machine is classified as a special lifting device. It is divided into electromagnetic (magnetic) stacker, vacuum chuck stacker, and automatic stacking robot according to the mechanical principle of stacking. The vacuum chucking stacker is the most widely used, mainly used fixed plate pallet, the plate through the roller transport to the pallet stacking, and then taken away by the forklift. Vacuum chucking machine is widely used in aluminium industry, with a variety of non-ferrous metal industry supporting the use of machining equipment, aluminum, sheet metal, such as palletizing. Simple operation, easy to use, labor-saving, palletizing and tidy, is the ideal aluminum processing equipment.

Electromagnetic Stacker

One of the common stacker machines, electromagnets adsorption lifting, palletizing, transfer, cutting. According to the production needs of different styles, the main application is steel sheet transport.

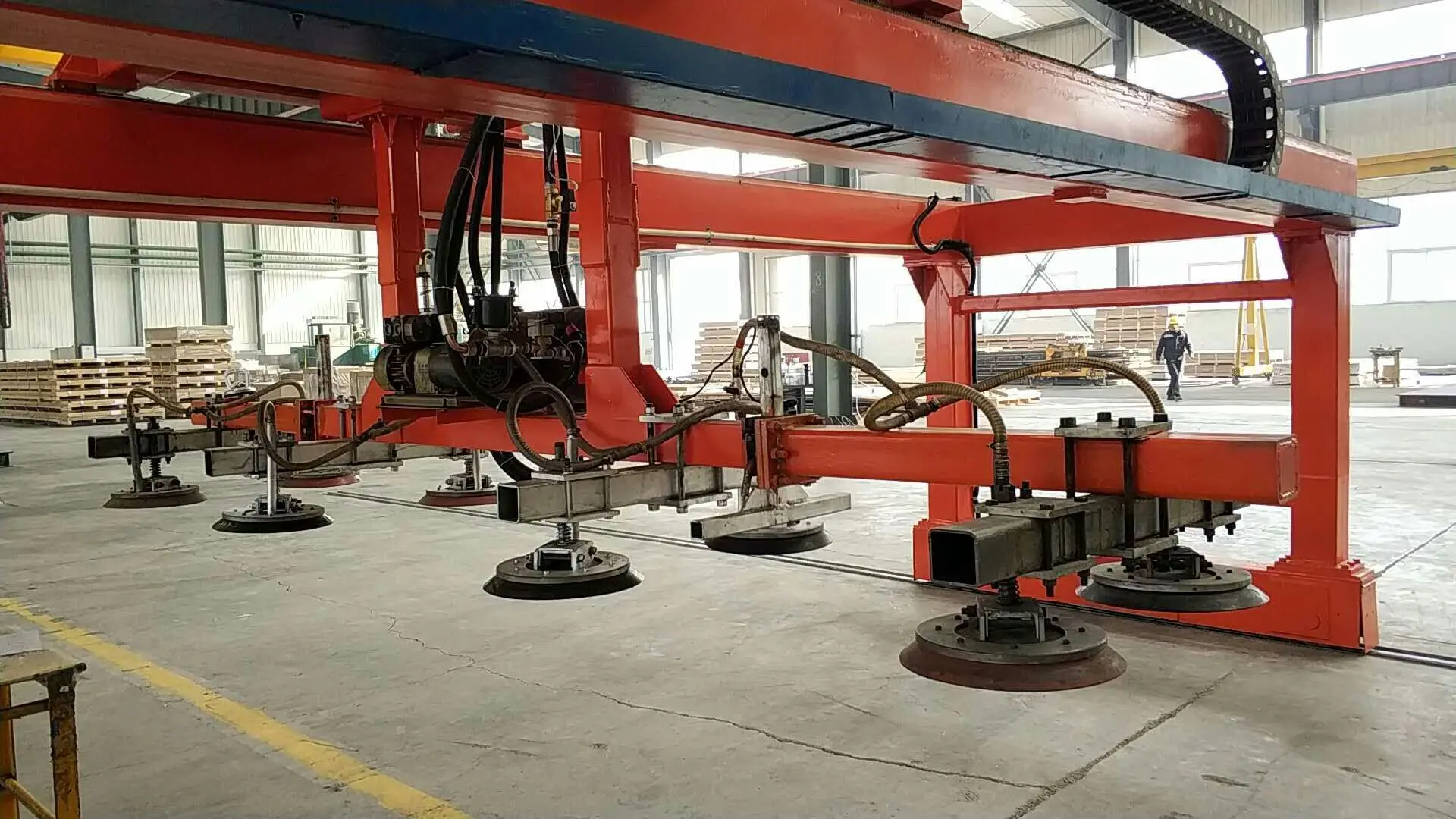

Vacuum Chuck Stacker

For short-distance transport, palletizing mechanical products. Due to the sucker limit, the object should be light weight, smooth surface, mainly used in aluminum sheet, glass material and other operations.

Automatic Stacking Robot

Mainly used in the process of mechanization of a higher degree of industrial. Products of different shapes, diversification of the industry, such as brick stacking, parcel transport and other special-shaped pieces of the handling of stacking transport function.

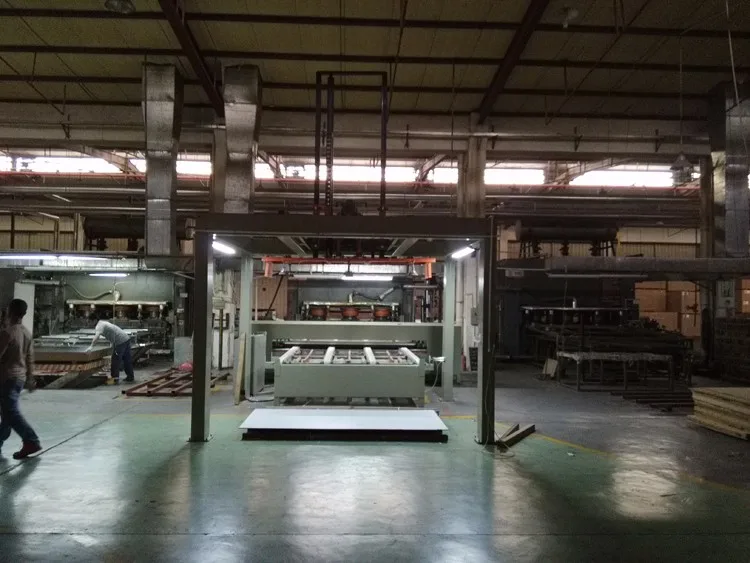

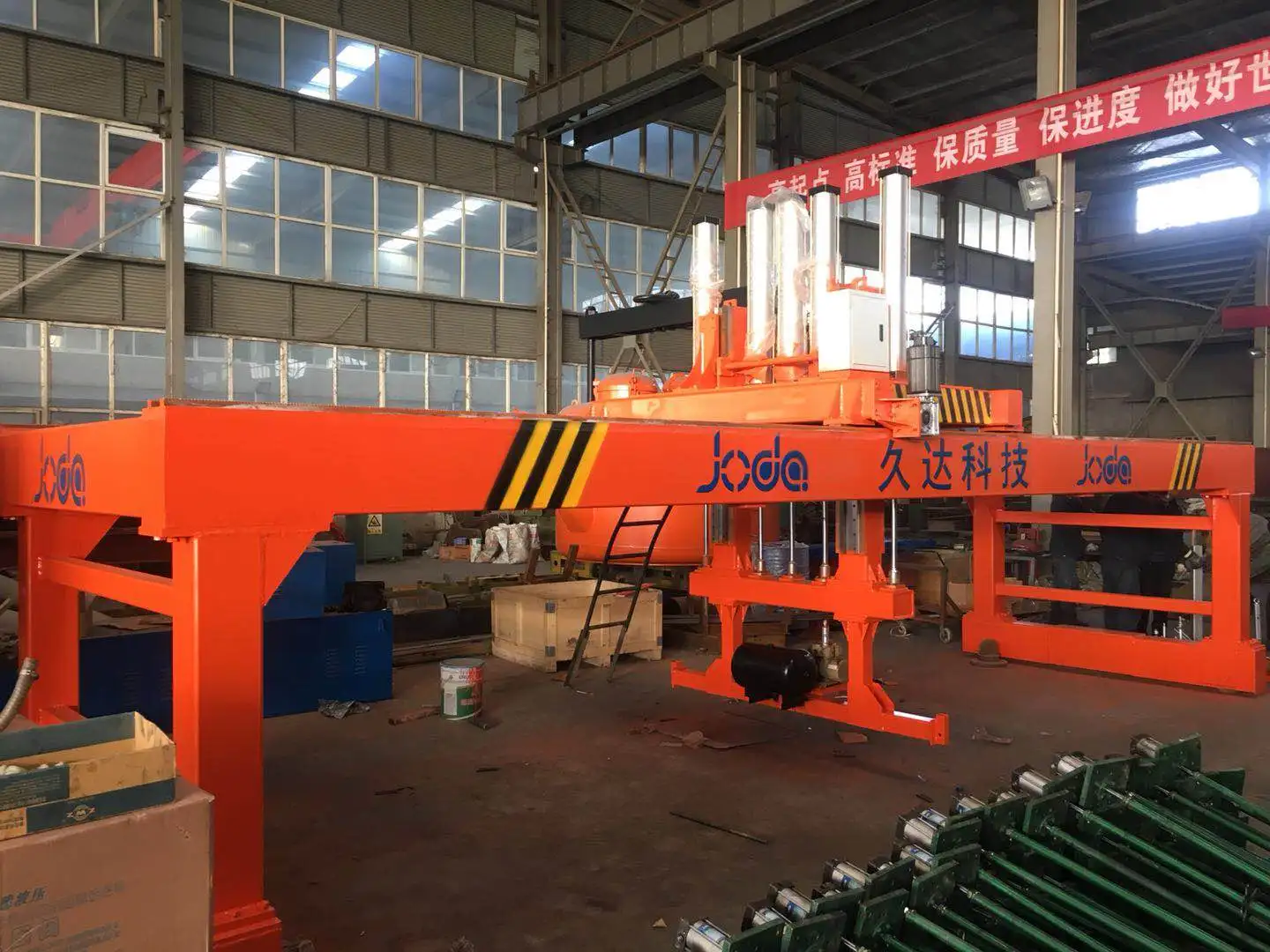

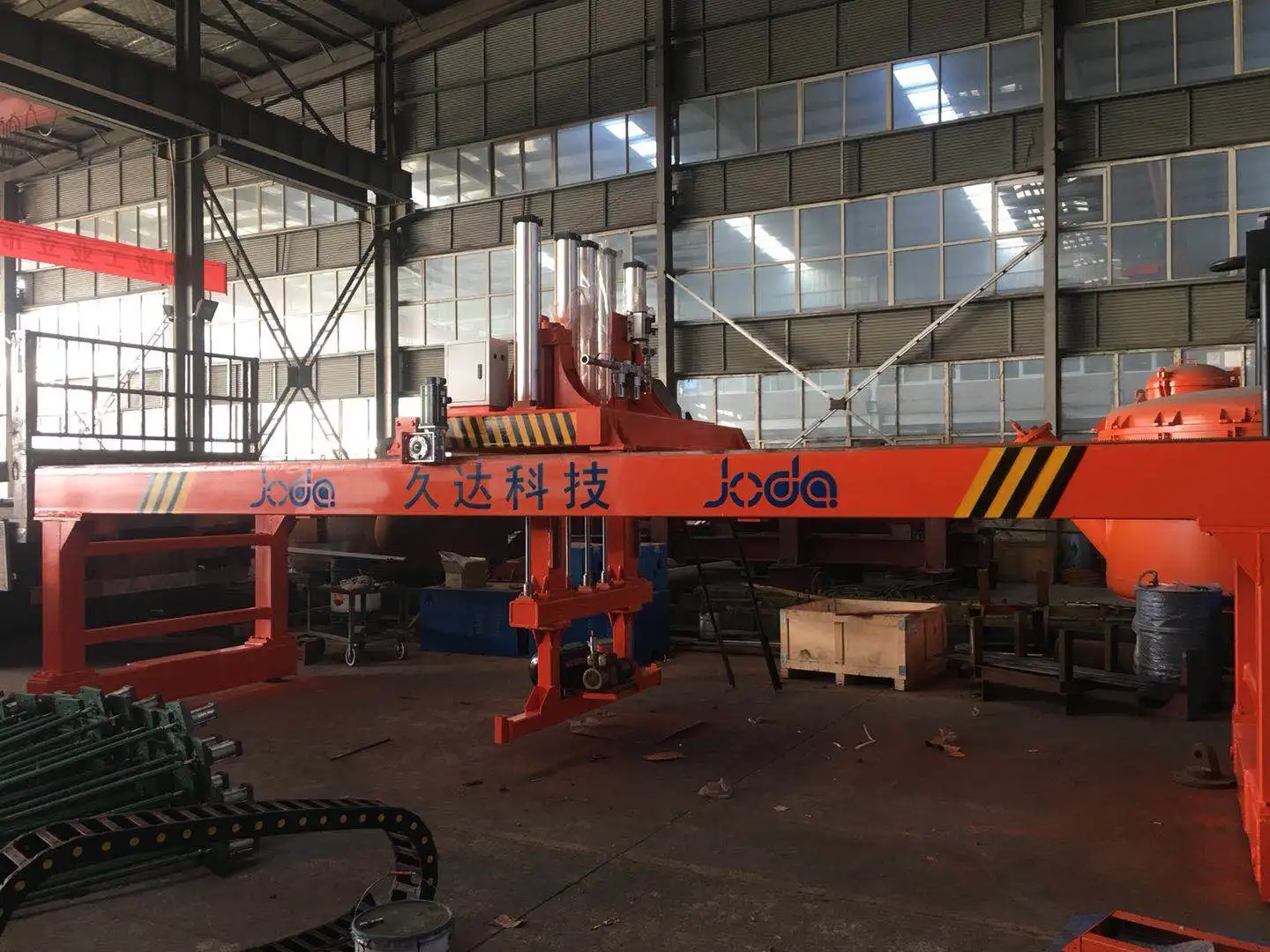

Automatic vacuum chuck stacking machine produced by Zhengzhou Joda Technology Co., Ltd, mainly used in aluminum, glass, plastic panels and other plate products pallet automatic stacking and mechanical cutting punch with the loading process. Effectively reduce the labor intensity and improve production efficiency, and more to protect the safety of employees. Equipment is simple, stable performance.

Advantage

Product Characters

The use of electricity, liquid integration technology, program interlocking, safe and reliable, so that the operation of the equipment each cycle of the same process.
Body using high-precision, high strength castings and special welding technology and materials, good rigidity, vibration resistance, long life.
Reasonable institutional optimization, broad vision, simple and flexible operation

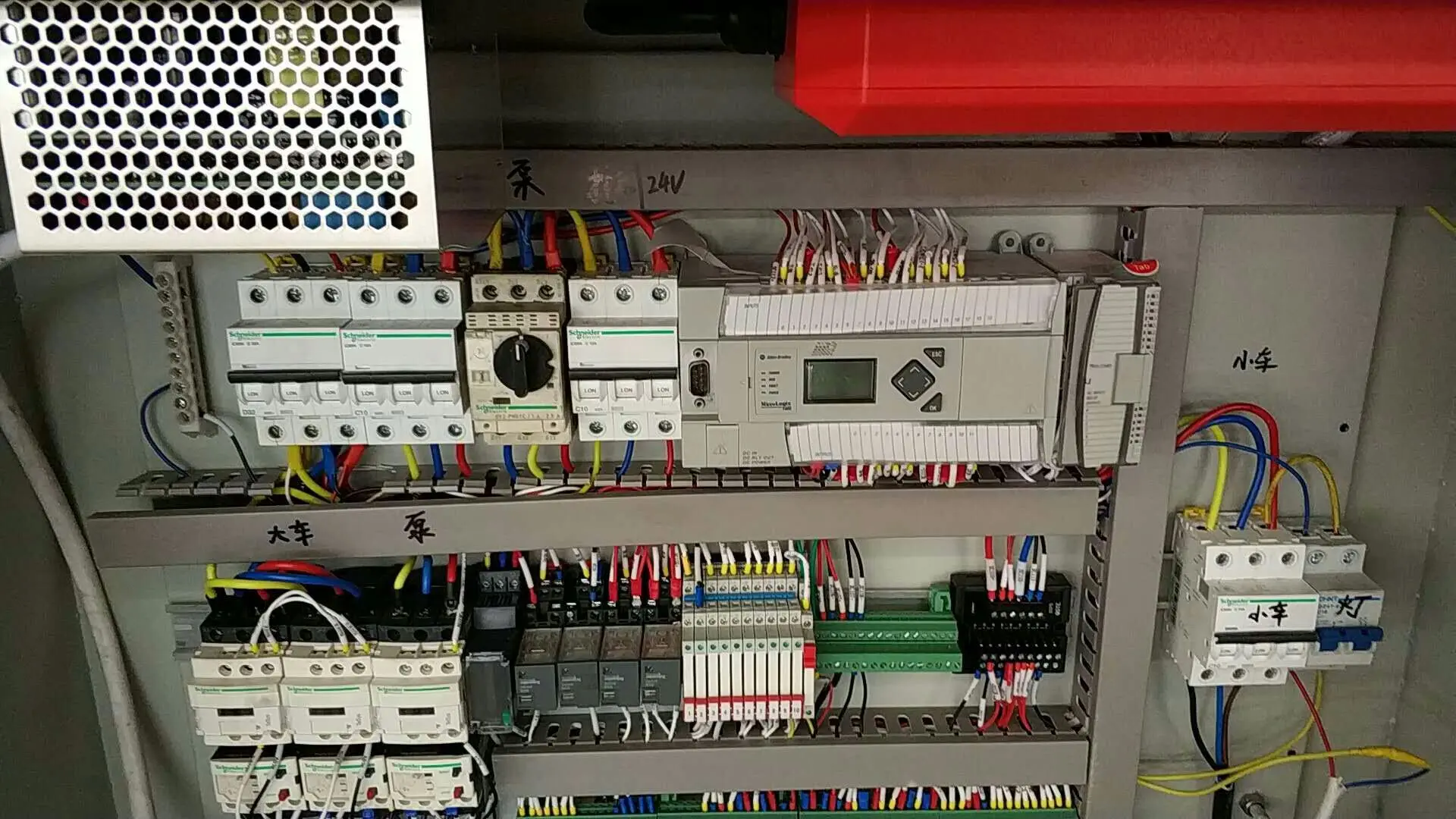

Programmable Logic Controller PLC

Electrical system using programmable logic controller PLC can be fully automatic, semi-automatic, manual operation. Automatic cycle operation, equipped with data input and output devices, control systems, including safety logic control and fault diagnosis system, remote monitoring system.

Working Principle

Place the vacuum chucking machine on the demand point. Set the program, distance, time, speed, lifting height and other specific parameters. Press the automatic start key, you can automatically produce a good output plate to the specified location. After the stacking position is raised to a certain height, the finished product will be packed and palletized, and the trailer will take away for the next batch of stacking.

Speed can be automatically adjusted to maintain the amount of turnover within the board warehouse. Achieve sustained and stable production. Truly reduce the labor intensity of workers, improve work efficiency, save labor, reduce production costs.

Main Effect

1.Stacking
The finished products of non-ferrous metal sheet are processed sorting and packaging, can form an automated operation to reduce scratches on the plate scratches, efficient production, process operations.
2.Feeding
With other types of machinery for loading operations, such as cutting plate production and feeding process by the vacuum chuck stacker to complete.

CNC machine tools for the material to solve the problem, saving staff labor to achieve mechanical automation and improve production efficiency, from the perspective of the interests of one year can save 4-6 staff expenses. Automatic retrieval, positioning, transfer fully automated production.

Process Requirement

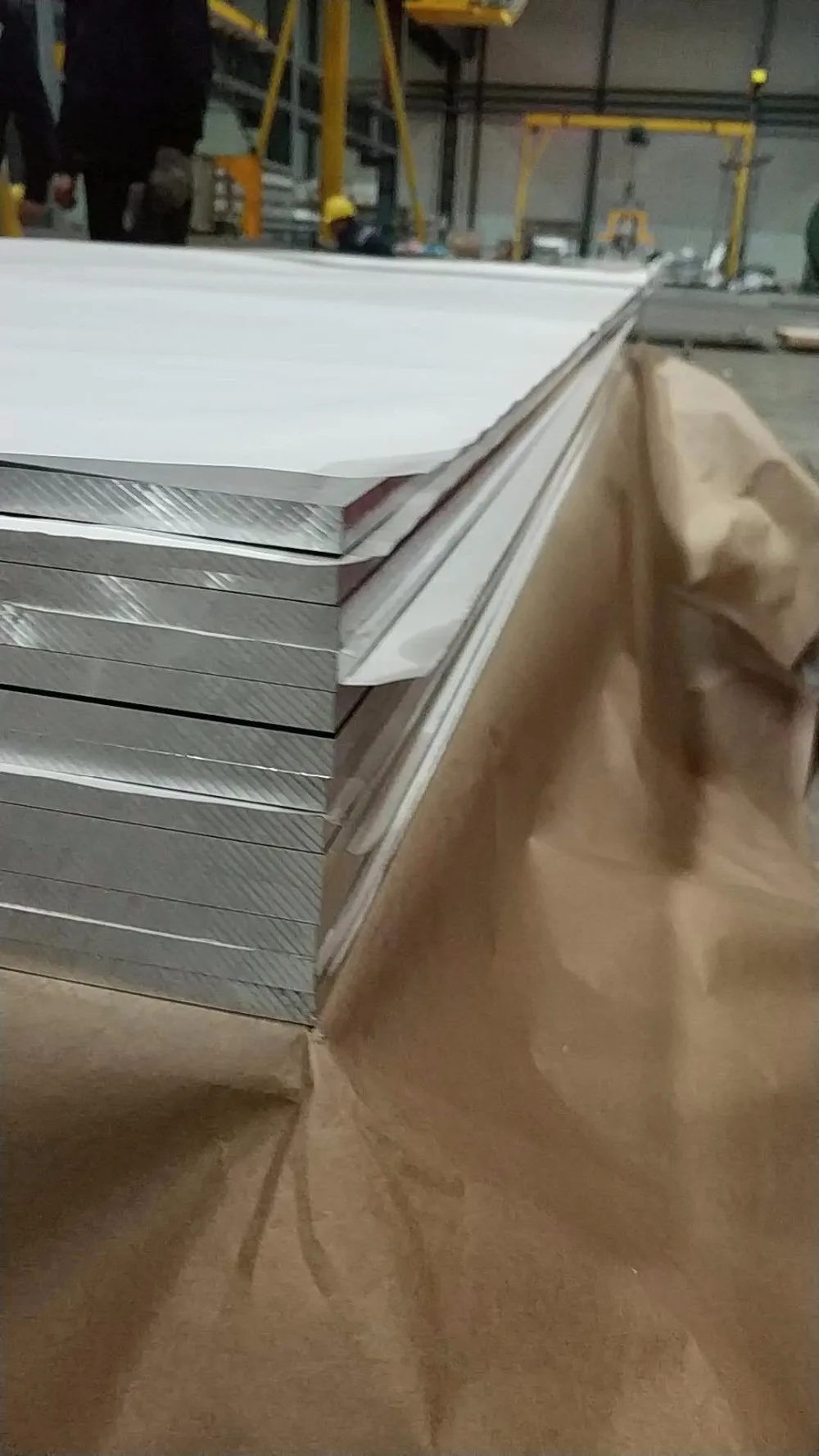

Stacking Material

Stacking materials: smooth surface objects of standard form, aluminum, glass, wood.
Stacking material temperature: room temperature.
Stacking material specifications: thickness <10mm; width: 1500 mm -4 150 mm; length: 3000 mm - 24000 mm.
Number of palletizing: single pallet.

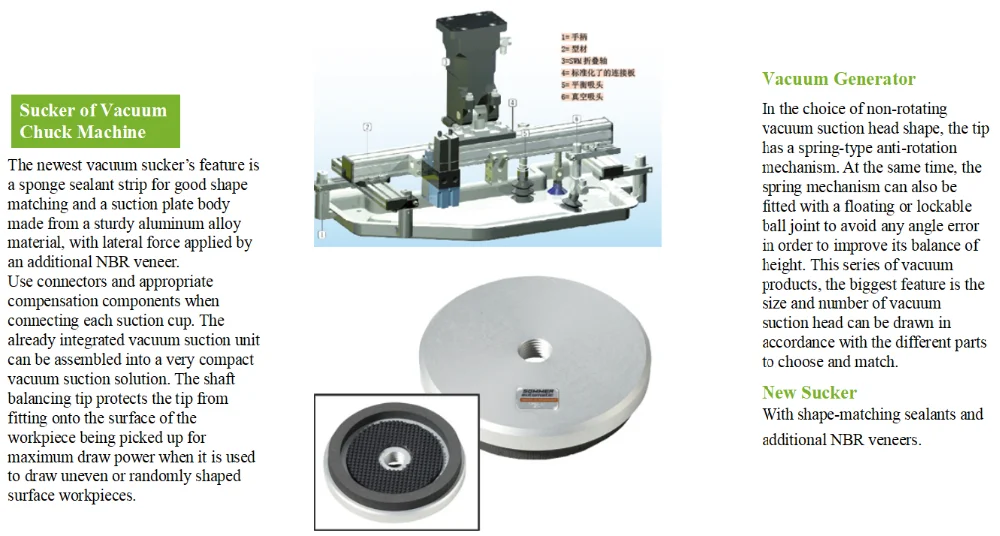

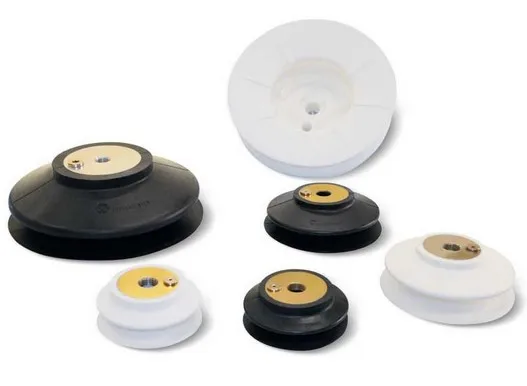

Vacuum Sucker

A single sucker quality requirements: not more than 1kg.
The size of the stacker machine meets the requirements of on-site production.
The number of vacuum suckers according to the size of the production to determine the number of use.
Sucker with the stacker manipulator lift together, translational movement.

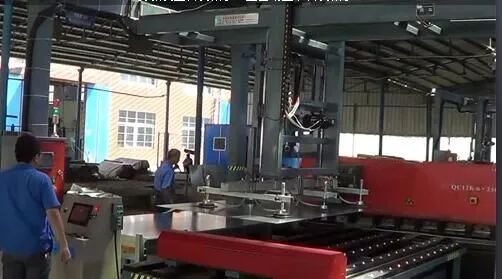

Combination operation of vacuum Stacking Machine

The stacker can be combined with other types of machines, for example as a feeder for board cutting. Shearing machine production feeding process by the vacuum chucking stacker machine to complete. By the vacuum chuck stacker machine to move the plate to the pallets, cut by the shears.

Packing & Delivery
Why Choose Us
FAQ

Q:What Is the Warranty for The Machines?
A:12Months for Free Guarantee and Life Long Standard Paid Services.
Q:What Is The Materials?
A:All the materials are procured from qualified mill with certificate according to the Drawing Requirement.
Q: How Can I Get The Price?
A:Within 24 Hours, if urgent, please directly call us.
Q:Whether The Machine Price Can Be More Discount?
A:In general, our MOQ is 1 Set with very Resonable Price. But if large order, we also can apply to our manager to appropriately give you a best discount.
Q:What about Delivery Date?
A:Usually about 35 days after confirming the order (signed drawings) and receiving deposit.
Q:What Kind of Report do We Provide?
A:We provide a whole-set of the production reports, including the Weekly Report, Monthly Report, even  Daily Report which you can follow up the situation of production at any time.
Q:Does Your Company Provide the OEM Or ODM Service?
A:Of course. We also supply OEM or ODM in this filed, welcome to discuss our cooperation.
Q:Do You Offer Oversea Installation?
A:We can provide experienced engineer to help you install the equipment under the condition you assume the related cost, as well as training your workers freely.
