100 Set/Sets per Month Joda Aluminum Smelter Equipment Ladle Cleaner for Sale
Packaging & Delivery
Ladle Cleaner will be packed in steel box made from steel sheet and angle steel. Important parts will be packed with air bubble film.
Qingdao, Shanghai & as your request
Joda Aluminum Smelter Equipment Ladle Cleaner for Sale

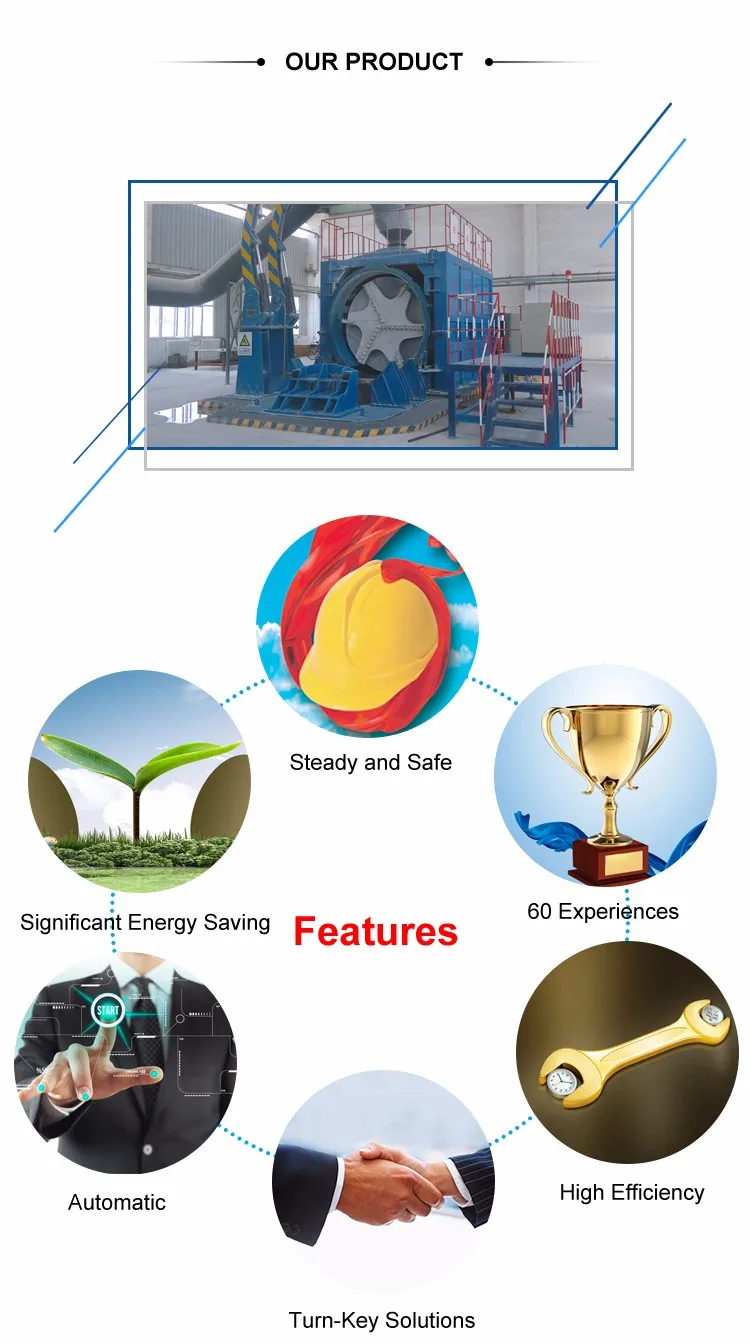

What Are The Features of Our Ladle Cleaner?
The aluminum ladle cleaner is a product which is independently researched and developed by our company and has new structure, new form and high efficiency, cleans aluminum slag, precipitates and other things which are attached to the wall of an aluminum ladle by a mechanical cutting method and discharges the cut debris to a collection box by using a spiral conveying device, which prevents a masonry heat-resistant layer from being accidentally damaged by an air pick for cleaning, greatly prolongs the service life of the aluminum ladle, shortens the cleaning time of the aluminum ladle, reduces labor intensity and improves operating environment and working efficiency.

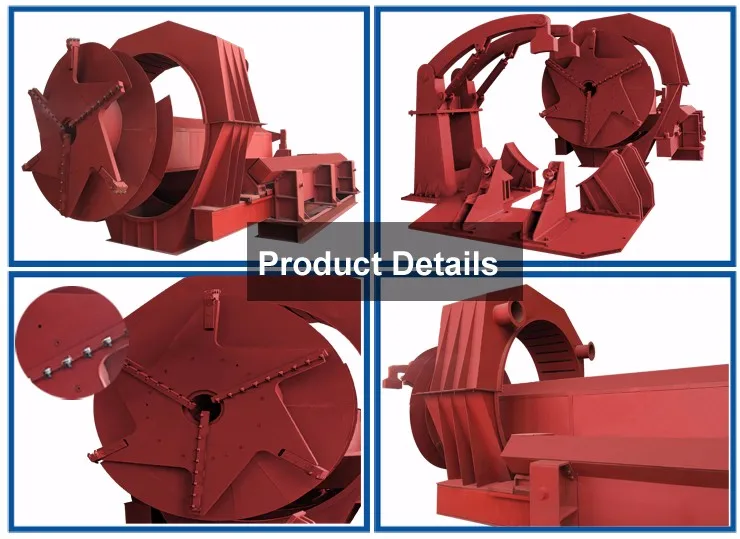

What Are The Details of Our Ladle Cleaner?
The ladle cleaner consists of frame, ladle fixing device. The frame body is a rectangular frame and the hydraulic clamping device and an adjustable V-shaped positioning support are arranged on the ground fixing plate. And the propulsion device is connected with the main frame through the joint of the propelling cylinder rod through the joint with the articulated bearing. The mainframe frame is installed on the rectangular frame rail through the roller wheel. The main engine is equipped with a transmission mechanism including a speed reducer body, a hydraulic motor, a cutting blade and a rotary cutter. The combination tool includes a milling cutter with a round carbide blade and a milling cutter with a flange and a cutting blade. The main drive shaft of the flange is connected to the cutter arbor of the combined tool by means of a bolt.
What's The Technical Parameters of Our Ladle Cleaner?
According to Ladle Height
Milling Head Diameter
According to Ladle Inner Diameter
Linear Cutting Speed
Maxuminum Augers Torque
Maxuminum Working Capacity
How Does Our Ladle Cleaner work?
The working process of the aluminum ladle cleaner: the aluminum ladle is lifted to a turning working table of the cleaner, the cover part of the aluminum ladle is detached, a mechanical fixture clamps the aluminum ladle, the working table is turned 90 degrees to a cutting working position, and the aluminum ladle is clamped and positioned again. A milling cutter head rotates and implements feed travel, the milled debris is pushed out by the spiral conveying device and flows into a bin, the milling cutter head returns to the original position after milling to the bottom of the aluminum ladle, the aluminum ladle is positioned and loosened by the mechanical fixture, the working table is turned 90 degrees, and the mechanical fixture loosens, thus finishing the mechanical automatic cleaning process of one aluminum ladle.
It is applied to clean aluminium slag and sediment on the wall of hot ladle at the temperation from 560℃ and 650℃. The automatic equipment could clean a ladle for 20~30 mins and clean 8~10 ladles for one day to increase turnover of the equipment and decrease the quantity of standby ladles. Cutting head at the whole surface of ladle has little gap with lining of the ladle to avoid damaging. It not only improves the state of ladle, but also decreases labor intensity, improves working environment and enhances the production efficiency.
Comparison of Ladle Cleaner
About 1.5 Hours
About 28 Hours
Liner Use Life
Maintenance Cost Per Year
How About Us??
What About The Package and Delivery?
As a professional manufacturer for aluminum smelters, we have rich experience and good reputation at home and aboard. Our products have been exported to many countries, such as Iceland, Sweden, Germany, Turkey, Malaysia, ect. Our logistics team is professional in shipment both containers and also by bulk vessels.
QWhat Is the Warranty for The Machines?
A12Months for Free Guarantee and Life Long Standard Paid Services.
QWhat Is The Materials?
AAll the materials are procured from qualified mill with certificate according to the Drawing Requirement.
Q How Can I Get The Price?
AWithin 24 Hours, if urgent, please directly call us.
QWhether The Machine Price Can Be More Discount?
AIn general, our MOQ is 1 Set with very Resonable Price. But if large order, we also can apply to our manager to appropriately give you a best discount.
QWhat about Delivery Date?
AUsually about 35 days after confirming the order (signed drawings) and receiving deposit.
QWhat Kind of Report do We Provide?
AWe provide a whole-set of the production reports, including the Weekly Report, Monthly Report, even Daily Report which you can follow up the situation of production at any time.
QDoes Your Company Provide the OEM Or ODM Service?
AOf course. We also supply OEM or ODM in this filed, welcome to discuss our cooperation.
QDo You Offer Oversea Installation?
AWe canprovide experienced engineer to help you install the equipment under the condition you assume the related cost, as well as training your workers freely.
