Joda Aluminum Smelter 240KA Busbar Lifting Machine Anode Jack

FOB Reference Price:Get Latest Price
US $55,000-60,000 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China (Mainland)
Brand Name:
Joda
Model Number:
JDTSJ___K4-4W, JDTSJ___KA-8W
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
240KA busbar lifting machine
Power supply:
Electric
Cell type:
240KA0
Lifting jiont number:
4
Lift Mechanism:
Articulated Lift
Application:
Aluminum electrolysis industry
Color:
Customized
Certification:
ISO,CNAS,IAF
Warranty:
2 Years
Service:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
100 Set/Sets per Month 240KA Busbar Lifting Machine
Packaging & Delivery
Packaging Details
240KA Busbar Lifting Machine will be packed in strong exporting wooden case with pallets or as your request.
Port
Shanghai,Qingdao or as your request
Lead Time :
15 days after advance payment

Joda Aluminum Smelter 240KA Busbar Lifting Machine Anode Jack

240KA Busbar Lifting Machine is an important part of the superstructure of large-scale prebaked aluminum electrolytic pot. It is used to lift the busbar in process of aluminum electrolysis. Anode of is the replaceable prebaked anode and is fixed on anode busbar by clamps. And the busbar is installed and suspended on anode jack, so the busbar can be up and down with the jack. The anode carbon block will drop with the consumption of carbon anodes. When it drop to its lowest position, it need to lift the busbar to ensure the rational distance between the anode and the cathode, which helps electrolytic anode work under optimal and normal condition.

Joda Aluminum Smelter 240KA Busbar Lifting Machine Anode Jack

Technical Parameter

      Model Lifting jiont numberSpeedLoadPot-shell  type
JDTSJ-KA-4W455mm/min-186mm/min40T-120T160KA-660KA
JDTSJ-KA-8W

Feature

1. Reasonable structure design, reliable performance and easy to operate and maintain.

2. Long using life and keep the current of busbar density and stability.

3. Adopting special technology, which can enhance capacity and operational stability in work.

Joda Aluminum Smelter 240KA Busbar Lifting Machine Anode Jack

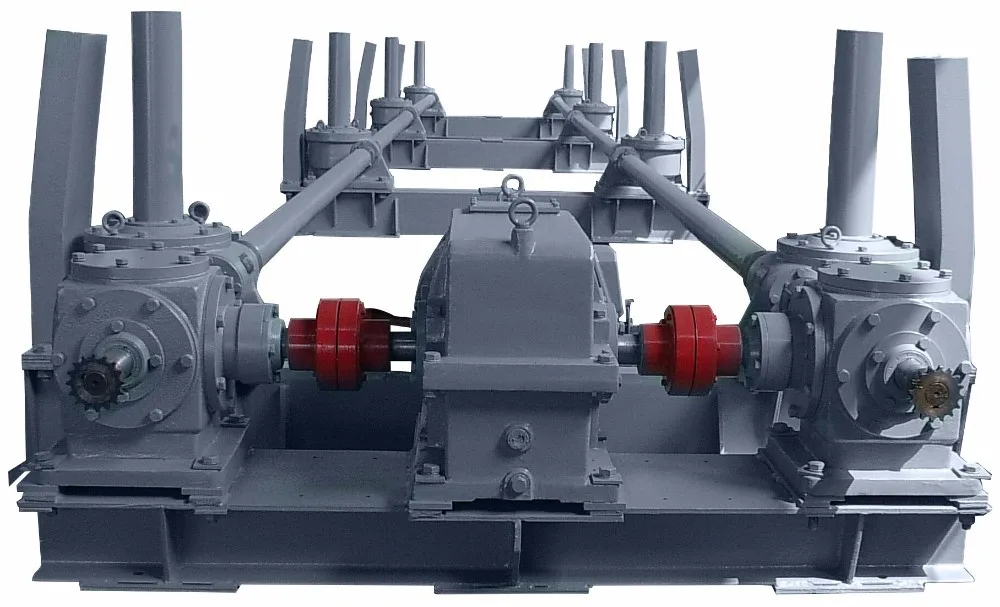

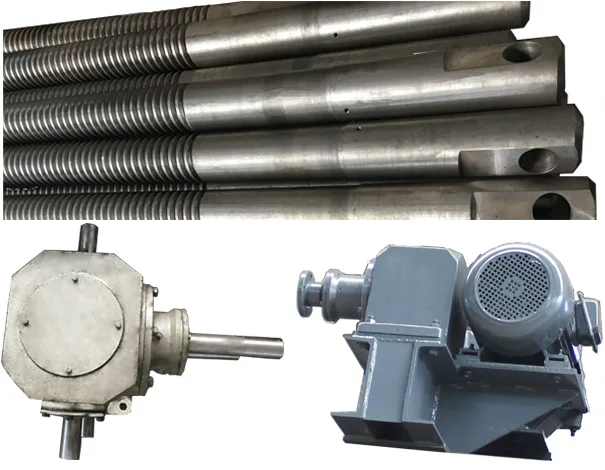

240KA Busbar Lifting Machine is mainly composed of motor, worm screw jack, beam,rear linkage, front linkage, set square, cross-head, hanging head, insulation , pivot assembly and others. Eight lifting points are stetted up and suspend the anode. When energize, it can be used to lift and drop the anode.

Joda Aluminum Smelter 240KA Busbar Lifting Machine Anode Jack

Joda Aluminum Smelter 240KA Busbar Lifting Machine Anode Jack

Working principle: The motor of high-speed rotation reduce speed and switches into translation through worm screw jack. Then enhancing eight lifting points of anode jack together by linkage to lift and drop the anode by switching translation into vertical reciprocating motion.

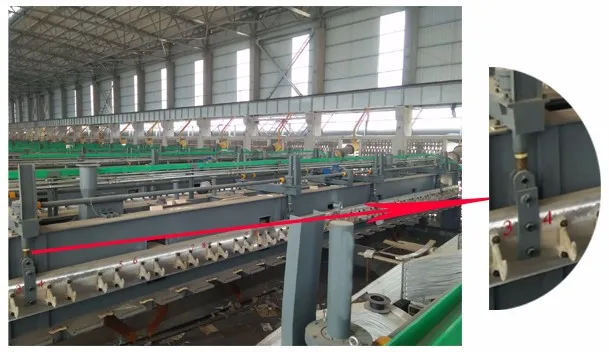

240KA Busbar Lifting Machine is used to lift the aluminum busbar to ensure electrolytic anode work well and optimal in electrolytic aluminum industry.

 Joda Aluminum Smelter 240KA Busbar Lifting Machine Anode Jack

Joda Aluminum Smelter 240KA Busbar Lifting Machine Anode Jack

Joda Aluminum Smelter 240KA Busbar Lifting Machine Anode Jack

Joda Aluminum Smelter 240KA Busbar Lifting Machine Anode Jack



Joda Aluminum Smelter 240KA Busbar Lifting Machine Anode Jack

Joda Aluminum Smelter 240KA Busbar Lifting Machine Anode Jack

Joda Aluminum Smelter 240KA Busbar Lifting Machine Anode Jack

Joda Aluminum Smelter 240KA Busbar Lifting Machine Anode Jack

Zhengzhou Joda Technology Co., Ltd. Is a modernized comprehensive enterprise integrating research, manufacturer, export and technical service of various types of innovation aluminum equipment for the aluminum smelters, such as automatic anode jacking frame, anode jacking mechanism, vacuum ladle, anode clamps, anode yokes, pot-shell, superstructure, ect.
