240KA Joda Brand China Manufacturer Busbar Lifting Frame System

FOB Reference Price:Get Latest Price
US $220,000-350,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Quick Details
Place of Origin:
Henan, China (Mainland)
Brand Name:
Key Word:
240ka anode lifting frame
Aluminium Smelter
Support Customized
Fully Automatic
Steel and others
Automatic Control Operation
One Year
Model Number:
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
30 Set/Sets per Month

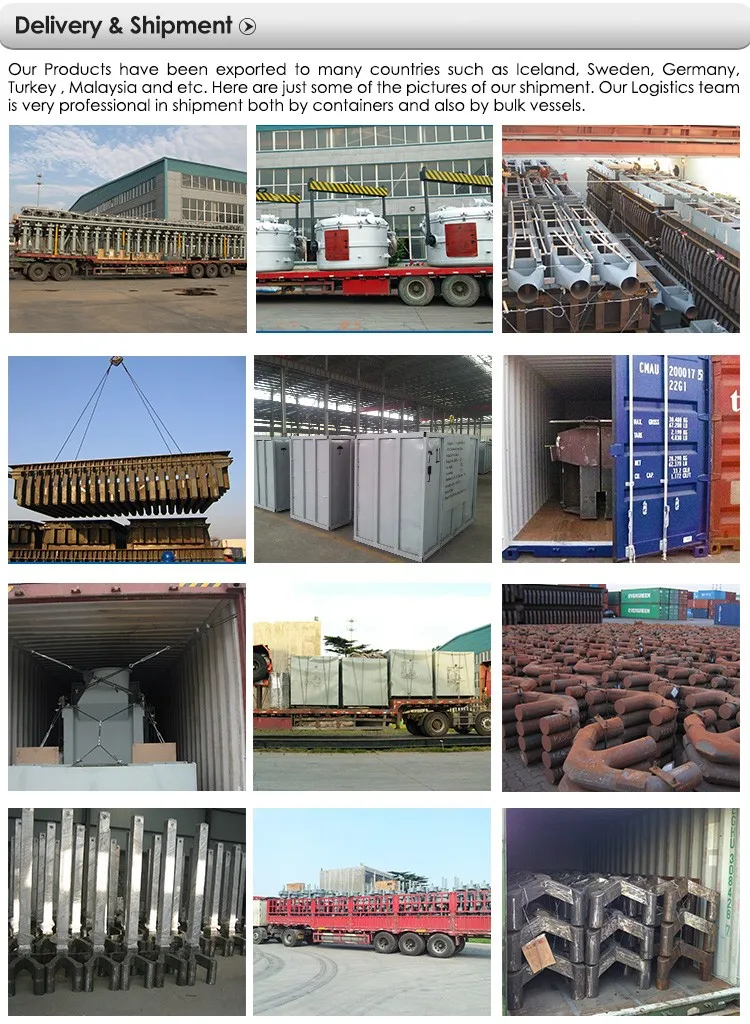

Packaging & Delivery
Packaging Details
240KA Joda Brand China Manufacturer Busbar Lifting Frame System will be packed in steel box made from steel sheet and angle steel. Important parts will be packed with air bubble film.
Lead Time :
Shipped in 30 working days after payment

240KA Joda Brand China Manufacturer Busbar Lifting Frame System

1.    Descriptions

The 240KA Joda Brand China Manufacturer Busbar Lifting Frame System, known as the busbar lifting mechnism, is used to lift the anode busbar periodically. The automatic anode jacking frame is regularly lifted by the PTM to the area above the pot. The frame-equipped devices are handled by remote control for operations such as clamping of anode rods, getting close to the anode busbar, release of grabs, etc. The anode jacking frame is used when the bus bar has reached its lower limit. It clamps the anodes into position while freeing the bus bar, allowing it to be raised.
2.    Structure:

The equipment consists of the frame, anode grabs, hydraulic wrenches, lifting beams, landing legs, ground supports, etc. All anode grabs springs are installed with the same height and travel distance to ensure the synchronization of all clamps actions.


Automatic Anode Jacking Frame is newly developed by Zhengzhou Joda Technology after over one year hard working. It has independent intellectual property (ZL 2014.20446264.5), gaining the international advance d level and filled the domestic level in this field.


After several tests and modifications, Patented “JODA” Full Automatic anode jacking frame, came into service in a large aluminium smelter in China since Jan. 2015, as the first Automatic Anode Jacking Frame in China, and completely fulfilled designed function and has been running smoothly.


Release and fastening of the anode clamp can be so integrated onto “JODA” Full Automatic Anode Jacking Frame that the whole process of jacking anode beam can be mechanized and automatically, which greatly improves the quality of raising anode beam and reduces the electricity as well as labor cost. The advanced design concept and the advantage of high quality and low price make JODA Automatic AJF very competitive in the whole international market.

PLC:                                                                                                     Allen-Bradey or Mitsubishi
Remote Control:                                                                                   HBCFST 510-1
Air Booster:                                                                                          400 L
Application                                                                                           Pot 160KA ~  660KA
Hydraulic Station:
Power supply                                                                                       three phase 380V 50Hz
Power                                                                                                  < 25kW
Hydraulic oil :                                                                                      fire resistant hydraulic oil

65 Experience                                                                                                 Turn-key Solutions

Patented Design                                                                                            Full Remote Control

1:2 Air Pressure Amplifier                                                            Significant Energy-saving Effect
