Joda Brand Aluminum Melting Furnace for Nonferrous Metals Industry

FOB Reference Price:Get Latest Price
US $12,500-29,000 / Sets | 1 Set/Sets Aluminum Melting Furnace for Nonferrous Metals Industry (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China (Mainland)
Brand Name:
joda
Model Number:
JDZ50D
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
Aluminum Melting Furnace for Nonferrous Metals Industry
Usage:
Transportation of molten aluminum
Power:
1.1KW
speed ration:
134.3/8789
Pouring Degree:
53°
Rated Volume:
2.174m3
Press Air Pressure:
0.6Mpa
Height:
3250mm
Weight:
7.6t
Certification:
GNAS,IAF,ISO
SupplyAbility
SupplyAbility:
100 Set/Sets per Month Aluminum Melting Furnace for Nonferrous Metals Industry
Packaging & Delivery
Packaging Details
Aluminum Melting Furnace for Nonferrous Metals Industry will be nude packed or as your request.
Port
Shanghai,Qingdao,Guangzhou or as your request
Lead Time :
Shipped in 15 days after advanced payment

Joda Brand Aluminum Melting Furnace for Nonferrous Metals Industry

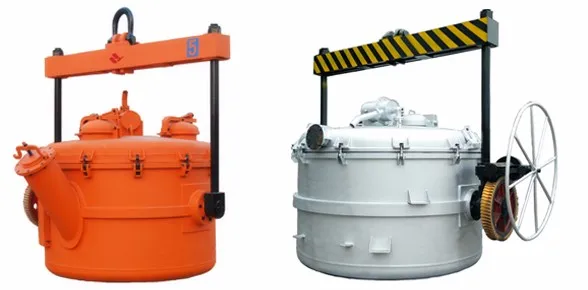

Aluminum Melting Furnace for Nonferrous Metals Industry, as a transfer equipment for metallurgical industry, is a larger sealed container with steel shell lined with refractory material. Relying on its own negative pressure generating system, it can generate a certain degree of vacuum in the ladle to extract and transfer the finished smelting liquid from pot-shell, such as aluminum, magnesium and other metals.

Joda Brand Aluminum Melting Furnace for Nonferrous Metals Industry

Technical parameter

Model

Rated

Volume

 (m³)

Press Air

Pressure

(Mpa)

Outer

Diameter

(mm)

Height

(mm)

Weight

(t)

Pouring

 Method

Pouring

Degree

Speed

Ration

Motor

Power

(kw)

JDZ50D2.1740.6203232507.6Manu/Auto53°134.3/87891.1
JDZ90D3.9130.62352355011.7Manu/Auto53°192/115941.5
JDZ120D5.2170.62640356013.2Manu/Auto53°192/115941.5
JDZ150D6.5220.62940360015.2Manu/Auto53°192/115951.5

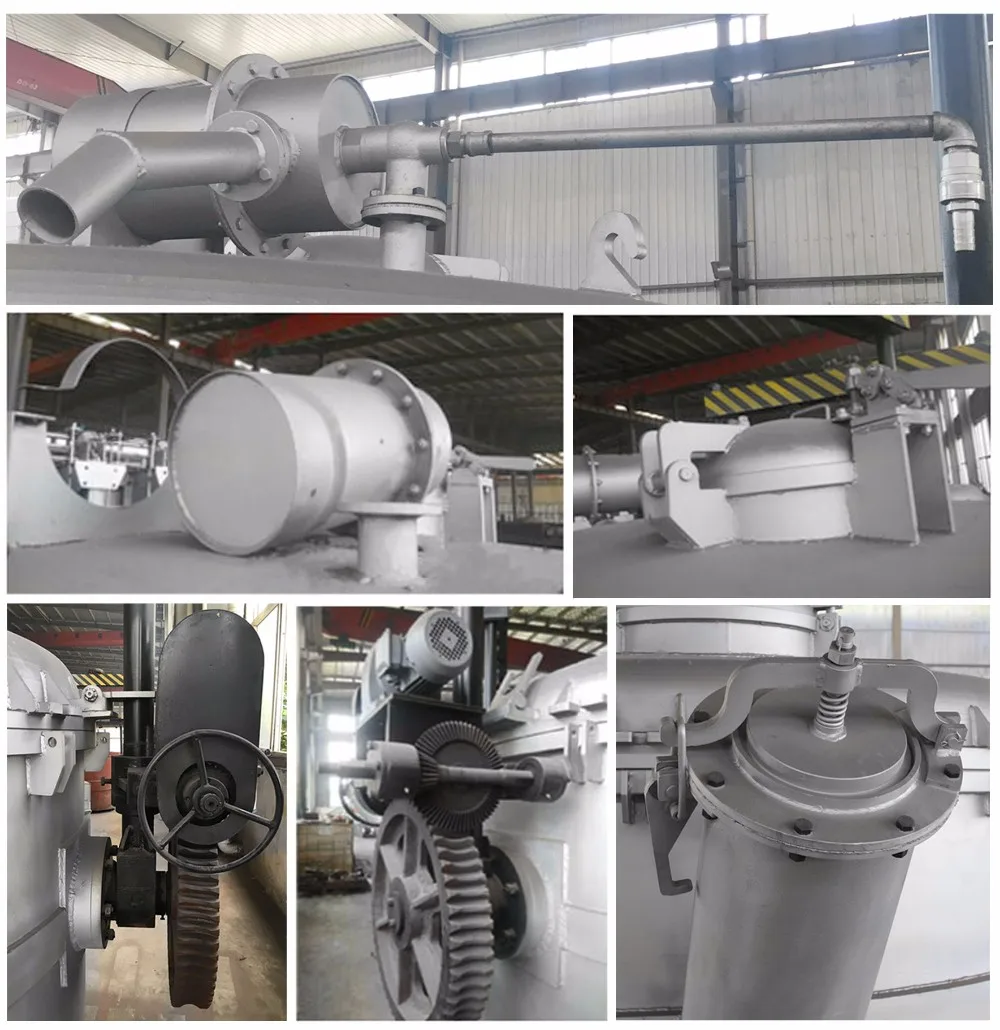

Structure

Aluminum Melting Furnace for Nonferrous Metals Industry is mainly composed of suctorial aluminum tube, jet exhauster, gearing, and heat insulation layer. The ladle is designed into detachable headed column and structure just like teapot ladle, with input and output on both sides. Making the ladle lift and transport convenient, and the heat loses slowly. It can be operated by manual or electrically-operated. The two modes can be interconvertibled with a clutch, which assure the liquid aluminum can be poured out in emergency.

Joda Brand Aluminum Melting Furnace for Nonferrous Metals Industry

Features

1.The cover will never become deformed by reason of vaulting.

2.UT, make sure the ladle is secured in use.

3.The new design jet exhauster, make sure it work as usual at 3000km altitude above areas.

4.The close device is handy and good airtight.

5.Excellent parts, both materials and processing technology.

Application

The vacuum ladle is mainly used for transportation of molten aluminum. It can also be used for transportation of other non-ferrous metals.

Joda Brand Aluminum Melting Furnace for Nonferrous Metals Industry

Joda Brand Aluminum Melting Furnace for Nonferrous Metals Industry

Joda Brand Aluminum Melting Furnace for Nonferrous Metals Industry

Joda Brand Aluminum Melting Furnace for Nonferrous Metals Industry

Joda Brand Aluminum Melting Furnace for Nonferrous Metals Industry

As a professional manufacturer for aluminum smelters, we have rich experience and good reputation at home and aboard. Our products have been exported to Malaysia, Turkey, Iceland, Sweden, ect.

Joda Brand Aluminum Melting Furnace for Nonferrous Metals Industry

Joda Brand Aluminum Melting Furnace for Nonferrous Metals Industry

Zhengzhou Joda Technology Co., Ltd. Is a modernized comprehensive enterprise integrating research, manufacturer, export and technical service of various types of innovation aluminum equipment for the aluminum smelters. Our products mainly can be divided into two categories, such as automatic anode jacking frame, anode jacking mechanism, vacuum ladle, anode clamps, anode yokes, pot-shell, superstructure, ect.
