240KA Anode Busbar Lifting Frame

FOB Reference Price:Get Latest Price
US $220,000-350,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Quick Details
Place of Origin:
Henan, China (Mainland)
Brand Name:
After-sales Service Provided:
Engineers available to service machinery overseas
Aluminium Smelter
Steel and others
Customer's Requirements
Automatic Control Operation
Fully Automatic
Product name:
Automatic Anode Jacking Frame for Aluminium Smelters
One Year
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
The anode jacking frame will be packed in a steel box made from steel sheets and angle steel.
Lead Time :
Shipped in 30 working days after payment

-_01.jpgAutomatic Busbar Lifting Frame

1.    Descriptions

The automatic busbar lifting frame, known as the anode jacking frame, is used to lift the anode busbar periodically. The automatic anode jacking frame is regularly lifted by the PTM to the area above the pot. The frame-equipped devices are handled by remote control for operations such as clamping of anode rods, getting close to the anode busbar, release of grabs, etc. The anode jacking frame is used when the bus bar has reached its lower limit. It clamps the anodes into position while freeing the bus bar, allowing it to be raised.
2.    Structure:

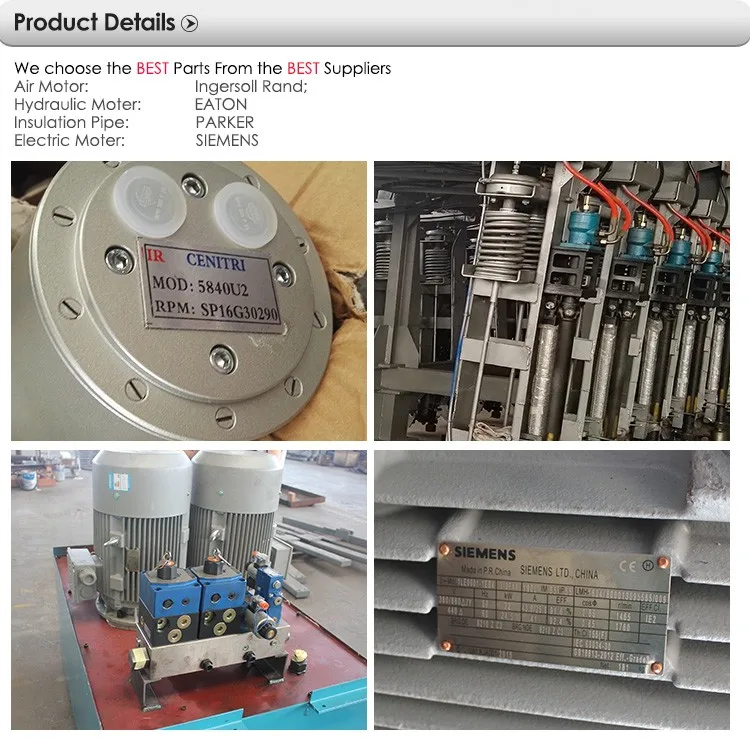

The equipment consists of the frame, anode grabs, hydraulic wrenches, lifting beams, landing legs, ground supports, etc. All anode grabs springs are installed with the same height and travel distance to ensure the synchronization of all clamps actions.


Automatic Anode Jacking Frame is newly developed by Zhengzhou Joda Technology after over one year hard working. It has independent intellectual property (ZL 2014.20446264.5), gaining the international advance d level and filled the domestic level in this field.


After several tests and modifications, Patented “JODA” Full Automatic anode jacking frame, came into service in a large aluminium smelter in China since Jan. 2015, as the first Automatic Anode Jacking Frame in China, and completely fulfilled designed function and has been running smoothly.


Release and fastening of the anode clamp can be so integrated onto “JODA” Full Automatic Anode Jacking Frame that the whole process of jacking anode beam can be mechanized and automatically, which greatly improves the quality of raising anode beam and reduces the electricity as well as labor cost. The advanced design concept and the advantage of high quality and low price make JODA Automatic AJF very competitive in the whole international market.


3.    Parameters
PLC:                                         Allen-Bradey or Mitsubishi
Remote Control:                      HBCFST 510-1
Air Booster:                              400 L
Application                               Pot 160KA ~  660KA
Hydraulic Station:
Power supply                         three phase 380V 50Hz
Power                                     < 25kW
Hydraulic oil :                         fire resistant hydraulic oil

4.    Features:

65 Experience                                                                            Turn-key Solutions

Patented Design                                                                      Full Remote Control

Significant Energy-saving Effect                                        1:2 Air Pressure Amplifier




20160818 Production Progress.jpg



Succussful Cases.jpg

There have already been 65 Joda's Busbar Lifting Frame working perfectly in many aluminium smelters both at home and abroad.


 Joda Anode Jacking Frame Working (2).jpg

Delivery.jpgFAQ 2.jpgService 1.jpgService 2.jpg

Company Certificate Visit.jpg

20160818 Product Categories.jpg
