Quick Details

  • Place of Origin: China (Mainland)
  • Brand Name: Joda
  • Model Number: 660KA
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Name: Automatic Anode Jacking Frame
  • Application: Aluminium Smelter
  • Color: Request
  • Type: Fully Automatic
  • Usage: Automatic Control Operation
  • Power: 22kw
  • Certification: ISO9001:2008
  • Weight: 30T
  • Function: Lifting Anode Busbar
  • Warranty: 12 Months

Packaging & Delivery

Packaging Details The anode jacking frame will be packed in steel box made from steel sheet and angle steel. Important parts will be packed with air bubble film.
Delivery Time 30 working days

Patented Automatic Anode Jacking Frame for Aluminium Smelter



Product Description

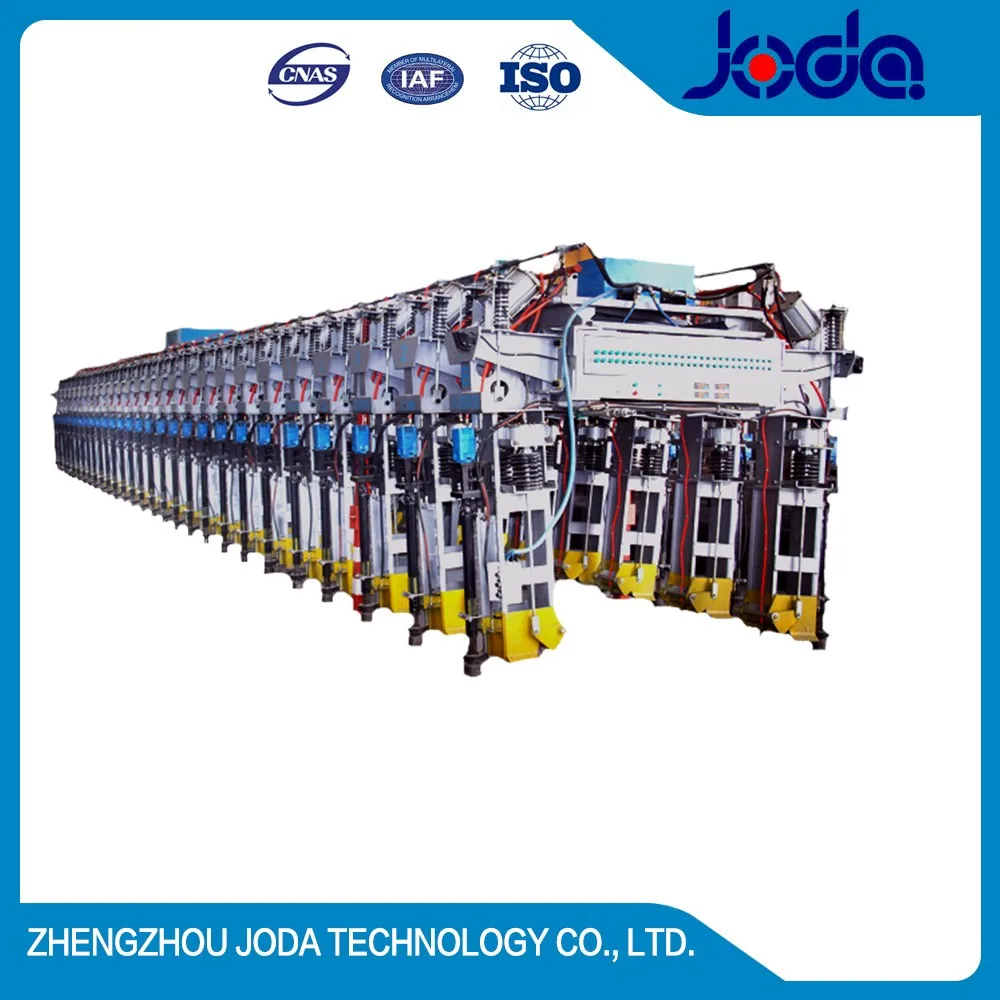

Automatic Anode Jacking Frame

1.   Descriptions

The automatic anode jacking frame, known as the busbar lifting mechnism, is used to lift the anode busbar periodically. The automatic anode jacking frame is regularly lifted by the PTM to the area above the pot. The frame-equipped devices are handled by remote control for operations such as clamping of anode rods, getting close to the anode busbar, release of grabs, etc. The anode jacking frame is used when the bus bar has reached its lower limit. It clamps the anodes into position while freeing the bus bar, allowing it to be raised.

2.   Structure:

The equipment consists of the frame, anode grabs, hydraulic wrenches, lifting beams, landing legs, ground supports, etc. All anode grabs springs are installed with the same height and travel distance to ensure the synchronization of all clamps actions.

Automatic Anode Jacking Frame is newly developed by Zhengzhou Joda Technology after over one year hard working. It has independent intellectual property (ZL 2014.20446264.5), gaining the international advance d level and filled the domestic level in this field.

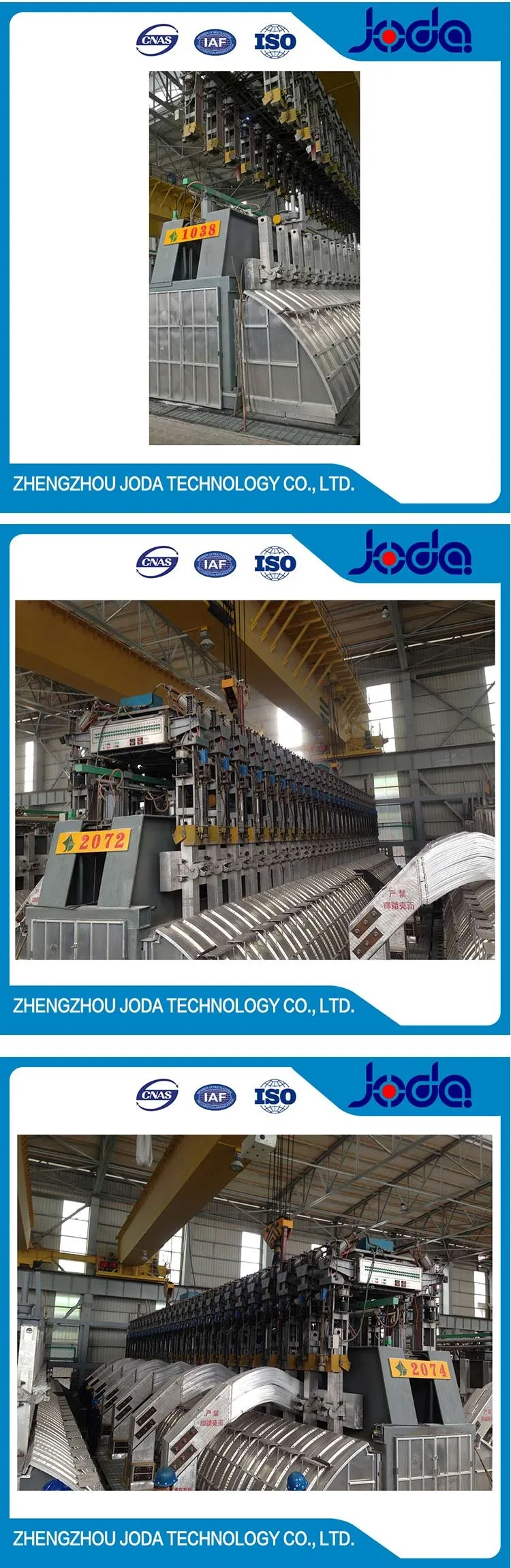

After several tests and modifications, Patented “JODA” Full Automatic anode jacking frame, came into service in a large aluminium smelter in China since Jan. 2015, as the first Automatic Anode Jacking Frame in China, and completely fulfilled designed function and has been running smoothly.

Release and fastening of the anode clamp can be so integrated onto “JODA” Full Automatic Anode Jacking Frame that the whole process of jacking anode beam can be mechanized and automatically, which greatly improves the quality of raising anode beam and reduces the electricity as well as labor cost. The advanced design concept and the advantage of high quality and low price make JODA Automatic AJF very competitive in the whole international market.







3.   Parameters



PLC:

Allen-Bradey or Mitsubishi

Remote Control:

HBCFST 510-1

Air Booster:

400 L

Application

Pot KA160 ~ KA 660

Hydraulic Station:



Power supply

three phase 380V 50Hz

Power

< 25kW

Hydraulic oil :

fire resistant hydraulic oil





There has already been 65 Joda's Automatic Anode Jacking Frames working perfectly in many aluminium smelters both at home and abroad.
